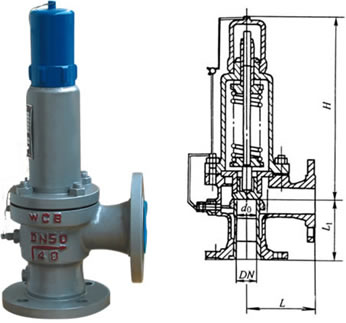

彈簧封閉微啟式安全閥A41H型

A41型主要性能規范：Main technical data
型號 type	整定壓力范圍 MPa Range of Adjusted pressure	密封試驗壓力 MPa sealing test pressure	排放壓力 MPa built-up pressure	回座壓力 MPa re-seating pressure	開啟高度 mm Value Lift	適用介質 Suitable medium	適用溫度 ℃ Suitable temperature	排量系數 coefficient of dischange
A41H-16C	Ps0.1～1.6	Ps<0.3時 Ps-0.03 Ps≥0.03時 90%整定壓力	≤1.1 x 整定壓力 setting pressure	≥85% 整定壓力 setting pressure	≥1/40 喉徑 Throat diameter 或1/20 喉徑 Throat diameter	水、油品無腐蝕性的液體等 Water,oil,non-corrosiveness liquid etc	-29～300	0.16
A41H-25	Ps1.3～2.5					水、弱腐蝕性的液體等 Watr,Weak corrosiveness liquid etc	-40～200
A41H-40	Ps1.6～4.0					腐蝕性液體等 corrosiveness liquid etc	-40～150
A41Y-64	Ps13.2～6.4
A41Y-100	Ps5.0～10.0
A41Y-16P	Ps0.1～1.6
A41Y-25P	Ps1.3～2.5
A41Y-40P	Ps1.6～4.0
A41Y-64P	Ps13.2～6.4
A41Y-100P	Ps5.0～10.0
A41Y-16R	Ps0.1～1.6
A41Y-25R	Ps1.3～2.5
A41Y-40R	Ps1.6～4.0
