GA44H-16、25 GA44H-40、64等 |
雙杠桿式安全閥 |
PN16~100 |
GA44H型安全閥的主要零件材料和GA42H-16C/25/40安全閥的相同。
GA44H型雙杠桿式安全閥適用于溫度≤450℃的電站鍋爐和壓力容器上，防止壓力超過允許最高值，介質可為蒸汽、空氣。
| 主要性能規范：Main technical data | |||||||
| 型號 type | 公稱壓力 PN/MPa Nominal Pressure | 工作壓力范圍 /MPa | 整定壓力 MPa setting pressure | 工作溫度 ℃ Working tempreature | 回座壓差 Re-seating pressure | 適用介質 suitable medium | 額定排量系數 Derated coefficient of discharge |
| GA44H-25 | 2.5 | 0.78～1.57 | 1.04倍工作壓力 1.04 times of working pressures | ≤450 | 4%～10% 整定壓力 setting pressure | 蒸汽 steam | 0.24 |
| GA44H-40 | 4.0 | 1.57～2.45 | ≤450 | ||||
| GA44H-64 | 6.4 | 2.45～4.22 | ≤450 | ||||
| 主要零部件材料：Main parts material | ||||||
|
零件名稱 The name of parts |
閥體 body |
閥座、閥瓣 Seat Disc |
閥桿 Stem |
襯套 Bushing |
杠桿 Lever |
重錘 Steelyard weight |
| 材料 Material |
碳素鑄鋼 stainless steel |
不銹鋼 stainless steel |
不銹鋼 stainless steel |
不銹鋼 stainless steel |
碳素鋼 Carbon steel |
灰鑄鐵 cast steel |

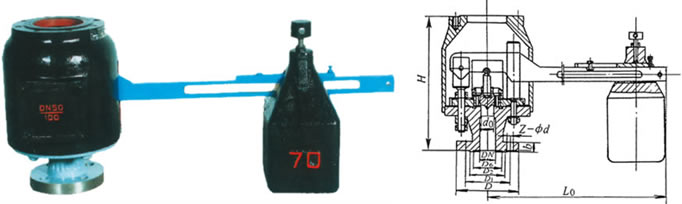

| 主要尺寸及重量：Main size and weight | |||||||
| 型號 Type:GA44H-25 | |||||||
| 公稱通徑 DN/mm |
尺寸 /mm | ||||||
| H | L | D | D1 | D2 | b | Z-φd | |
| 50 | 350 | 705 | 165 | 125 | 100 | 2O | 4-φ18 |
| 80 | 360 | 705 | 200 | 160 | 135 | 22 | 8-φ18 |
| 100 | 42O | 705 | 230 | 190 | 160 | 24 | 8-φ23 |
| 注:進出口法蘭均為平面法蘭。Notice: The inlet and discharge are the plane flange | |||||||
| 型號 Type:GA44H-40 | ||||||||
| 公稱通徑 DN/mm |
尺寸 /mm | |||||||
| H | L | D | D1 | D2 | D6 | b | Z-φd | |
| 50 | 350 | 705 | 165 | 125 | 100 | 88 | 2O | 4-φ18 |
| 80 | 360 | 705 | 200 | 160 | 135 | 121 | 22 | 8-φ18 |
| 100 | 42O | 705 | 230 | 190 | 160 | 150 | 24 | 8-φ23 |
| 型號 Type:GA44H-64 | ||||||||
| 公稱通徑 DN/mm |
尺寸 /mm | |||||||
| H | L | D | D1 | D2 | D6 | b | Z-φd | |
| 80 | 480 | 885 | 210 | 170 | 140 | 121 | 33 | 8-φ23 |
