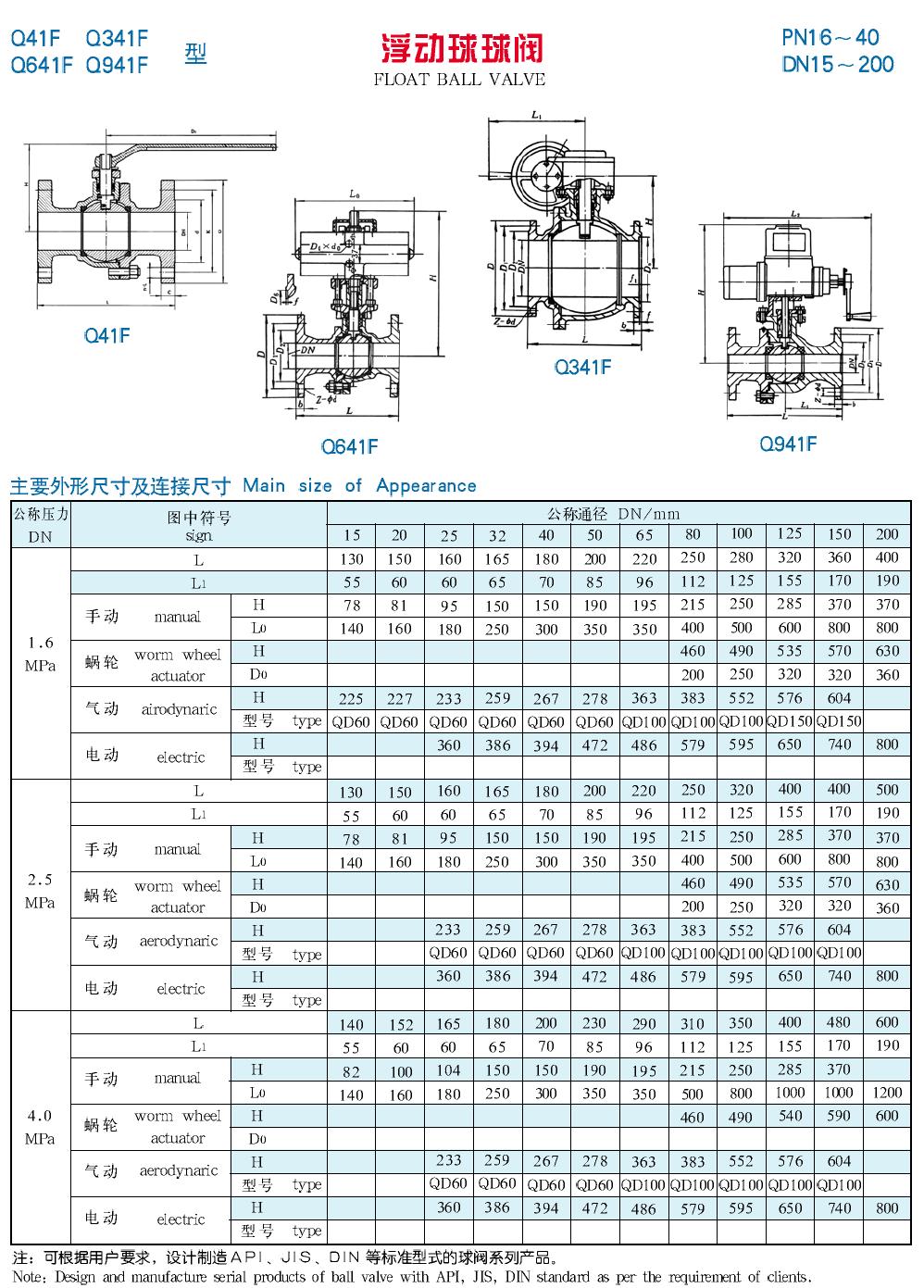

Q41F Q341F Q341F Q941F MQ341F MQ941F |
浮動球球閥 |
PN16~100 DN15~400 |

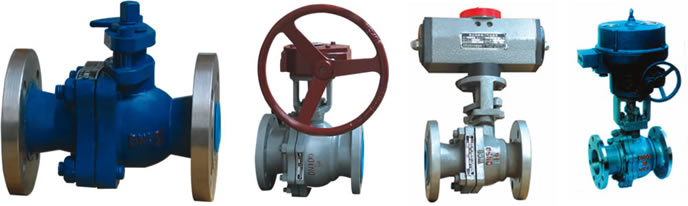

手動浮動球球閥、氣動浮動球球閥、 電動浮動球球閥、 渦輪浮動球球閥
| 結構特點 | structure feature: |
| 1、全通徑結構，流體阻力小，開關迅速、方便。 2、可靠的閥座密封.采用雙斜面彈性密封圈、降低了摩擦系數。減少鍘乍扭矩，保證低壓、高壓有可靠的密封.如圖1。 3、當介質的沖刷力較大時.特別設計的閥座防沖刷結構能有效防止介質的沖刷,bbl呆使用壽命.如圖2。 4、可靠的閥個F&封.閥桿倒密封結構，可防止閥桿脫出和保護填料不受破壞。 5、球閥內通道光滑，可輸送粘性介質、漿液粉塵及固體顆粒。 |
1.All diameter stnuctuue, seal fluid iEsistanoe, rapid andeasy open and close. 2. Reliable valve seat seal adopts double-bevel elastic sealing, which lowers the abrasive coefficient, obaease the operation torque, ensure reliable low and high pressuue seal. 3. When the scouring force of media is larger, the anyi-scouring structure speaally designed for valve seat can efficiently prevent the scauing of media and ermure the use life. 4. Reliable valve handle seal and back seal structure of valve handle can prevent the valve handle from deviation and protect the filling from damafe. 5. The smooth channel in the ball valve can transport theglutinous media, serous dust and solid particle. |
| 主要性能規范：Main Technical Data | |||||
| 公稱壓力 MPa nominal pressure | 1.6 | 2.5 | 4.0 | 6.4 | |
| 試驗壓力 MPa testing pressure |
殼體強度 body strength | 2.4 | 3.75 | 6.0 | 9.6 |
| 液體密封 liquid seal | 1.76 | 2.75 | 4.4 | 7.04 | |
| 氣體密封 gas seat test | 0.6 | 0.6 | 0.6 | 0 .6 | |
| 主要零部件材料：Material of main parts | ||||||
| 法蘭密封面 flange seal |
公稱壓力PN MPa |
產品型號 type |
||||
| 突面 Convex noodles |
1.6 | Q4lF-16 | Q4lF-1Q | Q41F-16C | Q4lF-16P | Q4lF-16R |
| 2.5 | Q41F-25Q | Q41F-25 | Q41F-25P | Q41F-25R | ||
| 凸凹面 roughness |
4.0 | Q41F-40 | Q41F-4DP | Q41F-40R | ||
| 零 件 名 稱 name of parts | 材 料 牌 號 material | |||||
| 主要零件材料 Main parts material |
閥體 body | 甘幾田 | QT450-10 | WCB | CF8 | CFSM |
| 球體 ball | 2Cr13 | 304 | 316 | |||
| 閥桿 stem | 1Cfl3 | 304 | 316 | |||
| 密封圈 sealing ring | 增強聚四氟乙烯 PTFE | 增強聚四氟乙烯 PTEE | ||||
| 填料 packing | 柔性石墨 flexible graphite | 聚四氟乙烯 PTF4 | ||||
| 適用工況 suitable circs |
適用介質 applicable medium | 水、蒸汽、油品，煤氣等可燃氣體 water,steam,oil etc |
弱腐性介質 |
腐蝕性介質 corrosive gas |
||
| 適用溫度 applicable temp | ≤150℃ | ≤150℃ | ||||
| 煤氣專用球閥 Coal gas appropriation ball valve | 型號前帶 ’M’ 為煤氣專用球閥 The model number take ’M’ as coal gas appropriation ball valve |
|||||
