Z960-250、320 |
高溫高壓電站電動閘閥Z960Y |
PN250、320 |
|
Z960Y-P54100V、P54170V |
DN100~300 |
一、高溫高壓電站閘閥Z960結構特點
|
結構特點: |
|
1、設計制造按J日/丁3595等標準。 |
|
Structure feature: |
|
1、Design standard JB/T3595. |
|
主要零件材料：Material of main parts |
||||
|
零件名稱 Name of parts |
材料牌號 Material type |
|||
|
閥體議 Body |
WCB |
WC6 |
WC9 |
|
|
閥板 Webge |
WCB |
WC6 |
WC9 |
|
|
閥蓋 Bonnet |
25 |
12Cr1Mo1VA |
||
|
閥桿 Stem |
1Cr17Ni2 |
|||
|
閥座 Sealing seat |
25 |
|||
|
密封環(huán) Sealing ring |
軟鋼 Soft steel |
軟鋼 Soft steel |
軟鋼 Soft steel |
|
|
填料 Packing |
增強柔性石墨 Expanded graphite |
|||
|
支架 Yoke |
WCB |
WCB 或 WC6 |
||
|
閥桿螺母 Nut |
鋁青銅 Aluminium - bronze |
|||
|
性能規(guī)范：Technical data |
||||||
|
型號 |
試驗壓力 Testing pressure |
工作壓力 |
工作溫度 Temperature |
適用介質 medium |
||
|
殼體 |
液密封 |
氣密封 |
||||
|
Z960Y-250 |
37.5 |
27.5 |
0.6MPa |
|
≤425℃ |
水蒸汽 water、steam |
|
Z960Y-320 |
48 |
36 |
|
|||
|
Z960Y-P54100V |
30 |
22 |
P5410 |
≤540℃ |
||
|
Z960Y-P54170V |
48 |
36 |
P5417 |
|||
|

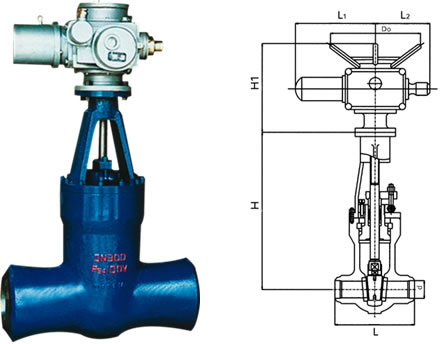

主要尺寸及重量：Main size of appearance and weight |
||||||||||||
|
公稱通徑 DN |
主要外形尺寸及連接尺寸 Main size of Appearance |
電動裝置 |
重量 |
|||||||||
|
d |
L |
H |
L1 |
L2 |
||||||||
|
Z960Y-250 |
||||||||||||
|
100 |
84 |
406 |
1164 |
437 |
277 |
DZW45 |
234 |
|||||
|
125 |
100 |
483 |
1402 |
437 |
277 |
DZW60 |
343 |
|||||
|
175 |
158 |
711 |
1650 |
554 |
309 |
DZW180 |
638 |
|||||
|
225 |
200 |
864 |
1650 |
554 |
309 |
DZW180 |
654 |
|||||
|
300 |
280 |
1067 |
216O |
764 |
398 |
DZW35O |
1973 |
|||||
|
Z960Y-320 |
||||||||||||
|
100 |
96 |
533 |
1236 |
437 |
277 |
DZW6O |
291 |
|||||
|
125 |
118 |
610 |
1302 |
437 |
277 |
DZW6O |
315 |
|||||
|
!50 |
l48 |
762 |
1402 |
526 |
283 |
DZW90 |
672 |
|||||
|
175 |
l48 |
762 |
1650 |
554 |
309 |
DZW180 |
684 |
|||||
|
225 |
222 |
1041l |
1650 |
554 |
309 |
DZW180 |
696 |
|||||
|
Z960Y-P54100V |
||||||||||||
|
l75 |
l48 |
762 |
1650 |
554 |
309 |
DZW180 |
683 |
|||||
|
225 |
222 |
1041 |
1650 |
554 |
309 |
DZW180 |
704 |
|||||
|
250 |
222 |
1041 |
1795 |
554 |
309 |
DZW180 |
1214 |
|||||
|
300 |
294 |
l245 |
2080 |
554 |
309 |
DZW250 |
2125 |
|||||
|
Z960Y-P54170V |
||||||||||||
|
125 |
98 |
630 |
1230 |
437 |
277 |
DZW6O |
312 |
|||||
|
225 |
186 |
1060 |
1680 |
554 |
309 |
DZW18O |
1401 |
|||||
|
300 |
278 |
1397 |
2265 |
764 |
|
DZW50O |
2834 |
|||||
|
320 |
310 |
l448 |
2265 |
690 |
|
DZW50O |
2632 |
|||||
|
350 |
338 |
1550 |
2536 |
715 |
398 |
DZWC-4 |
5591 |
|||||
