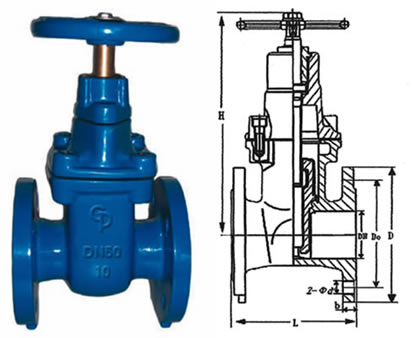

橡膠閘板閘閥 DIN 3352 PN10/PN16
一、橡膠閘板閘閥介紹
|
PN10法蘭按 DIN2532標準 |
PN10 Flange to DIN2532 |
二、橡膠閘板閘閥材質表
|
材質表：Material list |
|
|
部件 Part |
材質(PN10/PN16) Material |
|
閥體 Body |
灰鑄鐵/球墨鑄鐵 Grey east Iron/ductile Iron |
|
閥蓋 Bonnet |
灰鑄鐵/球墨鑄鐵 Grey east Iron/ductile Iron |
|
壓蓋 Cap |
灰鑄鐵/球墨鑄鐵 Grey east Iron/ductile Iron |
|
閥桿 Stem |
不銹鋼 X20Gr13 stainless steel |
|
閘板 Wedge |
灰鑄鐵/球墨鑄鐵 Grey east Iron/ductile Iron |
|
閘板螺母 Wedge nut |
黃銅 CuZn40Pb2 Brass |
三、橡膠閘板閘閥連接尺寸以及外形尺寸
|
size |
L(F4) |
L(F5) |
PN10 |
PN16 |
H |
||||||
|
D |
D0 |
b |
z-φd |
D |
D0 |
b |
z-φd |
||||
|
40mm |
14O |
240 |
150 |
110 |
18 |
4-18 |
150 |
110 |
18 |
4-18 |
248 |
|
50mm |
150 |
250 |
l65 |
125 |
20 |
4-18 |
l65 |
l25 |
20 |
4-18 |
263 |
|
65mm |
170 |
270 |
185 |
145 |
20 |
4-18 |
185 |
145 |
20 |
4-18 |
292 |
|
80mm |
180 |
280 |
200 |
160 |
22 |
4-18 |
200 |
l60 |
22 |
8-18 |
32O |
|
100mm |
190 |
300 |
220 |
180 |
22 |
8-18 |
220 |
180 |
24 |
8-18 |
366 |
|
125mm |
200 |
325 |
250 |
210 |
24 |
8-18 |
250 |
210 |
26 |
8-18 |
405 |
|
150mm |
210 |
350 |
285 |
240 |
24 |
8-23 |
285 |
240 |
26 |
8-23 |
443 |
|
200mm |
230 |
400 |
340 |
295 |
26 |
8-23 |
340 |
295 |
30 |
12-23 |
515 |
|
250mm |
250 |
450 |
395 |
350 |
28 |
12-23 |
405 |
355 |
32 |
12-23 |
600 |
|
300mm |
270 |
500 |
445 |
400 |
28 |
12-23 |
460 |
410 |
32 |
12-23 |
730 |
