BSS 163 PN10/PN16 橡膠閘板閘閥 BSS標準
一、橡膠閘板閘閥BSS標準介紹BSS標準
法蘭按BS4504-2000標準
結構長度按BS1414-1988標準
凸面法蘭
最大工作壓力 16bar(1.6Mpa)
最大工作溫度 100℃Flange drilled acc. to BS4504-2000
Face to Face dimension acc. to BS1414-1988
Raised face flange
Maximum working pressure 16bar(1.6Mpa)
Maximum working temperature 1000℃
二、橡膠閘板閘閥BSS標準材質表
|
材質表：Material list |
|
|
部件 Part |
材質(PN10/PN16) Material |
|
閥體 Body |
灰鑄鐵/球墨鑄鐵 Grey east Iron/ductile Iron |
|
閥蓋 Bonnet |
灰鑄鐵/球墨鑄鐵 Grey east Iron/ductile Iron |
|
壓蓋 Cap |
灰鑄鐵/球墨鑄鐵 Grey east Iron/ductile Iron |
|
閥桿 Stem |
不銹鋼 X20Gr13 stainless steel |
|
閘板 Wedge |
灰鑄鐵/球墨鑄鐵 Grey east Iron/ductile Iron |
|
閘板螺母 Wedge nut |
黃銅 CuZn40Pb2 Brass |

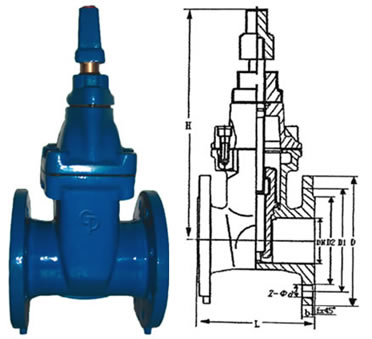

三、橡膠閘板閘閥BSS標準主要外形尺寸及連接尺寸
|
主要外形尺寸及連接尺寸:Main size of Appearance |
||||||||
|
Size |
L |
D |
D1 |
D2 |
b |
Z-φd |
f |
H |
|
50mm |
175 |
165 |
125 |
l02 |
20 |
4-18 |
3 |
224 |
|
65mm |
190 |
185 |
145 |
122 |
2O |
4-18 |
3 |
265 |
|
80mm |
203 |
200 |
160 |
138 |
22 |
8-18 |
3 |
300 |
|
100mm |
229 |
220 |
180 |
158 |
24 |
8-18 |
3 |
354 |
|
125mm |
254 |
250 |
210 |
188 |
26 |
8-18 |
3 |
415 |
|
150mm |
267 |
285 |
240 |
212 |
26 |
8-22 |
3 |
466 |
|
200mm |
292 |
340 |
295 |
268 |
30 |
12-22 |
3 |
580 |
|
250mm |
330 |
405 |
355 |
320 |
32 |
12-26 |
3 |
700 |
|
300mm |
356 |
460 |
410 |
378 |
32 |
12-26 |
4 |
802 |
