Z45X-10、16 Z45X-10、16 橡膠閘板閘閥Z45X PN10、PN16 DN 50~600
結構特點:
1、閥體采用精密鑄造，圓滑式底座(閥座)與包膠闡板緊閉密合達到無泄漏，無積物，流道暢通，啟閉輕巧靈活。
2、閥體內腔涂以無毒環氧樹脂，閘板內外表面均以橡膠完全包覆，對水質無污
染，環保節能。
3、軸封采用多道 "0"型密封圈密封，保證閥門絕無泄漏。
4、可廣泛使用于自來水、污水、建筑、石油、化工、食品、醫藥、輕紡、電力、冶金、能源等系統洲本管道上作調節和截流裝置使用。
5、可替代原Z44T-10, Z45T-10閘閥產品，屬環保型節能產品。
Structure characteristic:
1.Valve body adopts the precise founding method to make the smooth foundation (valve seat) and
encapsulate flashboard close waling together, which can reach no leakage, no sedimentation, smooth
fluid channel, easy and flexible open and close.
2.The valve cavity is painted with innoxious epoxy and the interior and exterior surface of flashboard
are fully packed with rubber, which have no pollution to water and can reach environmental protection
and energy saving.
3.Shaft seal is sealed with multi-channel type seal ring, which absolutely ensures no leakage of valve.
4.Can be widely used in the systematic fluid pipeline such as water supply, senate. buildings，petroleum, chemical industry, foodstuffs, medicine,light industry textile, power, metallurgy, energy,
etc as the adjustment and fluid dam equipment.
5.Can substitute the former Z44T-10, Z45T-10 gate valve products. It belongs to
the product with environmental protection and energy saving.
|
主要性能范圍: Main Technical data |
|||||
|
型號 Type |
試驗壓力 Testing pressure |
適用介質 |
適用溫度 temperature |
||
|
殼體 Shell |
液密封 Seat test |
||||
|
Z44X-10 |
Z45X-10 |
1.5 |
1.1 |
水，污水等 |
≤60℃ |
|
Z44X-16 |
Z45X-16 |
2.4 |
1.76 |
||
|

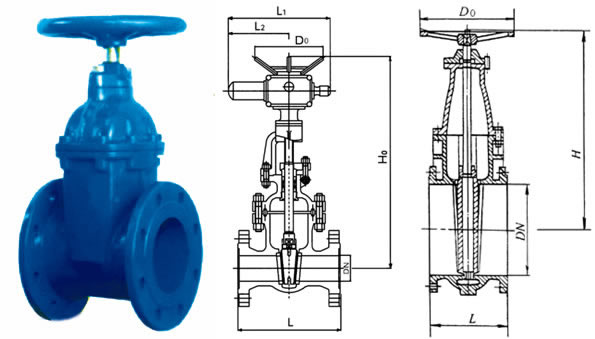

主要外形尺寸及連接尺寸：Main size of appearance |
|||||||||||||||
|
公稱 壓力 pressure |
圖中 符號 Sign |
公 稱 通 徑 DN(mm) |
|||||||||||||
|
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
||
|
1.0 |
L |
180 |
195 |
210 |
230 |
255 |
280 |
330 |
380 |
420 |
450 |
480 |
510 |
540 |
600 |
|
D0 |
200 |
200 |
250 |
250 |
320 |
320 |
360 |
400 |
400 |
400 |
500 |
500 |
720 |
720 |
|
|
H |
275 |
305 |
340 |
380 |
430 |
500 |
600 |
710 |
770 |
830 |
930 |
|
|
|
|
|
H1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
重量 |
17 |
23 |
32 |
40 |
59 |
89 |
100 |
142 |
190 |
|
|
|
|
|
|
|
1.6 |
L |
180 |
195 |
210 |
230 |
255 |
280 |
330 |
380 |
420 |
450 |
480 |
510 |
540 |
600 |
|
D0 |
200 |
200 |
250 |
250 |
320 |
320 |
360 |
400 |
400 |
400 |
500 |
500 |
720 |
720 |
|
|
H |
275 |
305 |
340 |
380 |
430 |
500 |
600 |
710 |
770 |
830 |
930 |
|
|
|
|
|
H1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
重量 |
18.5 |
24.5 |
34 |
42 |
62 |
92 |
100 |
150 |
200 |
|
|
|
|
|
|
