電動蝶閥D941W
|
主要性能規范：The main technical data |
|||||||||
|
型號 Type |
公稱壓力PN/MPa |
試驗壓力/MPa Testing preasure |
適用介質 |
適用溫度℃ temperature |
|||||
|
D941W-0.05C |
0.005 |
殼體試驗 Body testing |
密封試驗 The seal seating pressure |
塵煙氣、煙氣、空氣等 Contain dust smoke spirit,smoke spirit,air etc. |
-10~350 |
||||
|
D941W-0.05JMn |
0.15 |
0.055 |
450~650 |
||||||
|
主要零件材料：Material of main parts |
|||||||||
|
型號 Type |
零件名稱 Name of parts |
||||||||
|
閥體 Body |
蝶閥、支架 Disc、Yoke |
閥桿 Seat ring |
填料 Packing |
||||||
|
D941W-0.05C |
Q325A |
Q235A |
40Cr |
柔性石墨 Expanded graphite |
|||||
|
D941W-0.05JMn |
Q325A+高鋁耐火磚襯里 |
耐熱不銹鋼 Heat-proof stainless steel |
|||||||
|

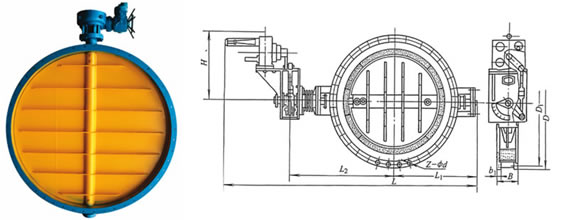

主要尺寸及重量：Main size of appearance and weight |
||||||||||||
|
型號Type: D941w-0.5JMn |
||||||||||||
|
公稱通徑 DN/mm |
尺寸/mm Sign |
執行器 |
轉矩/(N . m) |
|||||||||
|
D1 |
D |
B |
B1 |
L1 |
L2 |
L |
H |
b |
Z-φd |
|||
|
300 |
605 |
650 |
180 |
300 |
505 |
770 |
1715 |
489 |
12 |
12-φ18 |
DKJ-310 |
250 |
|
350 |
660 |
705 |
180 |
300 |
535 |
795 |
1765 |
489 |
12 |
12-φ18 |
DKJ-310 |
|
|
400 |
705 |
755 |
200 |
300 |
560 |
820 |
1815 |
489 |
12 |
16-φ18 |
DKJ-310 |
|
|
450 |
765 |
805 |
200 |
300 |
585 |
845 |
1865 |
489 |
12 |
16-φ18 |
DKJ-310 |
|
|
500 |
805 |
853 |
220 |
365 |
610 |
870 |
2019 |
569 |
14 |
20-φ18 |
DKJ-410 |
600 |
|
600 |
955 |
1005 |
220 |
365 |
660 |
920 |
2090 |
569 |
14 |
20-φ18 |
DKJ-410 |
|
|
700 |
1045 |
1100 |
240 |
365 |
710 |
970 |
2190 |
569 |
14 |
20-φ18 |
DKJ-410 |
|
|
800 |
1145 |
1200 |
240 |
420 |
760 |
1020 |
2440 |
730 |
14 |
24-φ24 |
DKJ-510 |
1600 |
|
900 |
1245 |
1300 |
260 |
420 |
810 |
1070 |
2540 |
730 |
14 |
24-φ24 |
DKJ-510 |
|
|
1000 |
1350 |
1405 |
260 |
420 |
860 |
1180 |
2645 |
730 |
16 |
28-φ24 |
DKJ-510 |
|
|
1200 |
1732 |
1792 |
280 |
450 |
960 |
1220 |
2910 |
660 |
16 |
32-φ24 |
DKJ-610A |
|
|
1400 |
1930 |
1990 |
300 |
450 |
1060 |
1320 |
3110 |
660 |
16 |
36-φ24 |
DKJ-610A |
|
|
1600 |
2130 |
2195 |
320 |
450 |
1660 |
1420 |
3310 |
660 |
22 |
40-φ24 |
DKJ-610A |
|
|
1800 |
2330 |
2395 |
340 |
480 |
1260 |
1520 |
3540 |
740 |
22 |
44-φ24 |
DKJ-610 |
4000 |
|
2000 |
2535 |
2600 |
360 |
480 |
1360 |
1620 |
3740 |
740 |
22 |
48-φ24 |
DKJ-610 |
|
